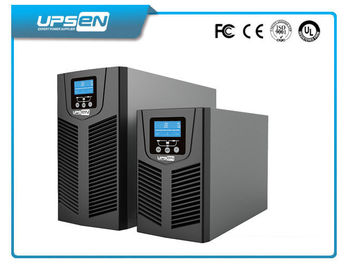

Solar Tower Online UPS Power with PV Input and Inbuilt Mppt Controller 1-3Kva

Solar Tower Online UPS Power with PV Input and Inbuilt Mppt Controller 1-3Kva
Solar Tower Online UPS Power with PV Input and Inbuilt Mppt Controller 1-3Kva

Large Image :  Solar Tower Online UPS Power with PV Input and Inbuilt Mppt Controller 1-3Kva

Product Details:
Place of Origin: China
Brand Name: UPSEN
Certification: CE, ISO, RoHS
Model Number: Bright Star Series 1-3Kva
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: Negotiation
Packaging Details: Wooden Box
Delivery Time: 7-15 Days
Payment Terms: T/T, LC, WU, Money Gram etc
Supply Ability: 50,000pcs/Month
Detailed Product Description
Waveform: Pure Sine Wave Output Power Factor: 0.8
Phase: Single Phase Protection: Over Load/Current/Voltage, Short Circuit Etc
Display: Digital LCD Display H.S. Code: 8504402000
High Light:

solar power storage systems

,

hybrid solar power system

Solar Tower Online UPS Power with PV Input and inbuilt Mppt Controller 1-3Kva

Model: Solar PV Online UPS Bright Star Series 1K-3Kva ( 1ph in / 1ph out )



Working Principle


1: PV Charges DC CAP with its maximum power and DC-DC booster work with +/- 390Vdc, if load power

     is bigger than PV power, the DC CAP voltage will drop and DC-DC booster output voltage will decrease
     too, AC-DC booster works with +/-360Vdc, thus it will share the load power automatically between PV
     AC. So the DC CAP voltage will reach to a stable value. Battery SCR Q1 stops if line voltage is normal
2: If PV power is bigger than load power, MPPT charger autoatically charges the battery. MPPT charger
     works in fload voltage mode, MPPT mode if battery voltage and DC CAP Voltage are high.
3: If AC loose, stop AC-DC booster, switch on batter SCR Q1, make battery and PV works together to
     power for the load.
4:  If both PV and AC not there, battery works to power the load as the last option.


Absolute advantages


1: No affexted by nation power regulartion policy
2: Ouput voltage is stable. Zero transfer time between line mode and battery mode.
3: Battery works in normal situation, not frequently discharged and the life time is extended max long.
4: UPS works even in very low AC voltage when PV is also in picture together sharing the load.


Technical Specification



Model

B1K

B2K

B3K

Rating

1KVA/800W

2KVA/1600W

3KVA/2400W

Input

Rated Voltage

220V/230V/240Vac

Phase

Single Phase with ground

Frequency

50Hz(60Hz)

Power Factor

0.99

Generator

Support generator input

Rated Current

5A

10A

15A

Input Thdi

≤10%

Protection

10A AC fuse

20A AC fuse

30A AC fuse

Output

Rated Voltage

220/230/240Vac

Voltage Range

200VAC/208VA/220VAC/230VAC/240VAC

Voltage Regulation

±2%

Frequency

50HZ(60Hz)

Overload

Overload Warning Only

105%±5%<Load

50s, then transfer to Bypass and alarm

105%±5%<Load≤125%±5%

25s, then transfer to bypass and alarm

125%±5%< Load ≤150%±5%

300ms, then transfer to bypass and alarm

Load > 150%±5%,

Battery

Rated Voltage

24VDC

48VDC

72VDC

PV Charger

Charging Method

2 staged: fast carge (MPPT), floating charge

Input Working Voltage Range

30V-150V

60V-150V

90V-150V

Max Input DC Voltage

160V

Max PV Power

50S, then return to rated power                                                                                              (105%±5%<PV Power≤125%±5%)

25S, then return to rated power                                              (125%±5%<PV Power≤150%)

1S, then return to rated power (PV Power >150%)

Rated charging current

50A

50A

33A

Rated charging power

1600W

2400W

2400W

Overcharge protection

30V±1V

60V±2V

90V±2V

Conversion Efficiency

>90%

PV Modules Utilization Rate

>98%

Floating voltage charging

27.5V

55V

82.5V

Thermal method

Intelligent forced air cooling

Over temperature protection

85℃

Automatic Retransfer

Yes

Transfer Time

0ms

Short Protection

Cut off output within 4 cycles

Communication

RS232 Interface

Monitor Software

Appending with UPS

Environment

Working temperatures

0℃~40℃

Altitude

<1000m

Audible noise

≤45db

Storage temperature

15℃ ~ 45℃

Working humidity

20%~95%

Dimension (mm)

335x186x325

425x186x325

Weight (Kg)

10

11

12

Standard

Ems

ESD

IEC61000-4-2 Level IV

RS

IEC 61000-4-3 Level III

EFT

IEC61000-4-4 Level IV

Surge

IEC61000-4-5 Level IV

Emi

Conducted

EN55022 Class A

Radiated

EN55022 Class A

Safety

GB4943-2001/IEC62040-1

Transportation

Drop test

GB-T4857-18

Vibration test

B-WR1-129(GB-T14715-93)



Competitive Advantages:


1: Three Years' warranty for pure sinewave inverter, and 1% free UPS or 2% free PCB Boards
3: Good after-sales service, we will be full responsible for any faults caused by our side
4: Professional experience in power field more than 10 years
5: Professional technical support before and after sales
6: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
7: Free OEM & ODM Service
8: Competitive price, quality and mature products
