JIELI LC1-D65 silver point Magnetice AC Contactor with CE Certificate

Certification
China Shenzhen City Breaker Co., Ltd. certification
China Shenzhen City Breaker Co., Ltd. certification
Excellent quality and fast delivery.

—— Victor

I want to say that your products very good. Thank you for all your suggestion, also good after sales service.

—— Mr Abílio Cipriano

Easy to talk with, very professional and fast service, the flag quality is super good. Even better than we ordered from Germany!!

—— Germany Fabian Scherb

I'm Online Chat Now

JIELI LC1-D65 silver point Magnetice AC Contactor with CE Certificate

JIELI  LC1-D65  silver  point  Magnetice  AC Contactor with CE Certificate
JIELI  LC1-D65  silver  point  Magnetice  AC Contactor with CE Certificate

Large Image :  JIELI LC1-D65 silver point Magnetice AC Contactor with CE Certificate

Product Details:
Place of Origin: ZHEJIANG
Brand Name: JIELI
Certification: IEC947-2,VDE0660&BS5452
Model Number: LC1-D65
Payment & Shipping Terms:
Minimum Order Quantity: 2400Pieces
Price: negotiation
Packaging Details: standard packing with your requirment
Delivery Time: 25 days after deposit
Payment Terms: L/C, T/T, , D/P
Supply Ability: 1000000PCS/month
Detailed Product Description
Main Circuit Rating Voltage: 690v Contacts: Siliver/Copper
Breaking Capacity: 600KA/H 1200KA/H



Quick Detail:
Breaking Capacity: 600KA/H 1200KA/H
Point: Silver
Quality: Stable and reliable
Guarantee: 5 years warranty
Certificate: CE/ISO9001/CB/TUV
Cover: Fire Proof
Contacts:Siliver/Copper
Main Circuit Rating Voltage:690v
Standard:IEC947-2,VDE0660&BS5452
Brand Name: JIELI LC1


Description:
AC contactor LC1-D65 New type

AC contactor LC1-D New type
is suitable for using in the circuits up to the rated voltage 660VAC 50Hz or 60Hz,  rated current 9A to 185A, making and breaking and frequent starting, controls the AC motor. Combined with the auxiliary contact group, air delayer, machine interlocking device etc, it is combined into the delay contactor, mechanical interlocking contactor, drat-delta starter, with the thermal relay, it is combined into the electro magnetic starter. This product conforms to the requirement of IEC 60947 4 -1 & GB14048.4 standards.


Applications:


LC1 Series AC Contactors is suitable for using in the circuits up to the rated voltage 660V AC 50Hz or 60Hz, rated current up to 620A, for making,breaking frequently starting&controlling the AC motor. Combined with the auxiliary contactblock,time & machine-interlocking device etc,it because the delay contactor ,mechanical interlocking contactor,star-delta starter.With the thermal relay,t is combined into the electromagnetic starter,The product comply with IEC60947-4.


Specifications:



Model

 D09

 D12

 D18

 D25

 D32

 D40

 D50

 D65

Rated working ccurrent(A)

 AC3

 9

 12

 18

 25

 32

 40

 50

 65

 AC4

3.5

 5

 7.7

 8.5

 12

 18.5

 24

 28

AC3 capacity of
3 squirrel-cage
motor AC3(KW)

 220/230V

2.2

 3

 4

 8.5

 7.5

 11

 15

 18.5

 380/400V

 4

 5.5

 7.5

 11

 15

 18.5

 22

 30

 415V

 4

 5.5

 9

 11

 15

 22

 25

 37

 500V

 5.5

 7.5

 10

 15

 18.5

 22

 30

 37

 660/900V

 5.5

 7.5

 10

 15

 18.5

 30

 33

 37

Rated heat current(A)

 20

 20

 32

 40

 50

 60

 80

 80

 Electrical life

 AC3×104

 100

 100

 100

 100

 80

 80

 60

 60

 AC4×104

 20

 20

 20

 20

 20

 15

 15

 15

 Mechanical life×104

 1000

 1000

 1000

 1000

 800

 800

 800

 800

 Number of the contacts

     3P+NO

3P+NC+NO

     3P+NC

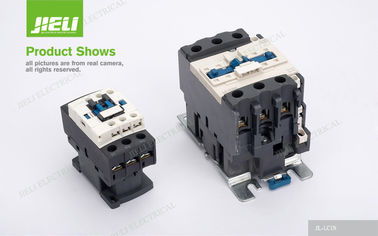

PRODUCTS   SHOW

JIELI  LC1-D65  silver  point  Magnetice  AC Contactor with CE Certificate 0JIELI  LC1-D65  silver  point  Magnetice  AC Contactor with CE Certificate 1JIELI  LC1-D65  silver  point  Magnetice  AC Contactor with CE Certificate 2JIELI  LC1-D65  silver  point  Magnetice  AC Contactor with CE Certificate 3
Competitive Advantage:

1.- Your client satisfied on the right schedule and quality
2.- Your can get good reputation from your market and obtain more orders
3.- Our professional service before and after sale
4.- The reasonable price
5.- Any questions from you are welcome and will be replied in 24 hours
