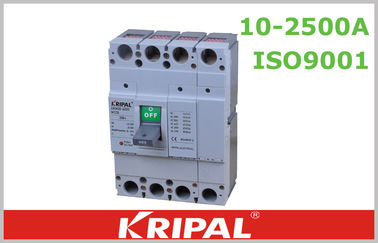

350A Small Molded Case Circuit Breaker 4 Pole MCCB with Motor Distribution

350A Small Molded Case Circuit Breaker 4 Pole MCCB with Motor Distribution
350A Small Molded Case Circuit Breaker 4 Pole MCCB with Motor Distribution

Large Image :  350A Small Molded Case Circuit Breaker 4 Pole MCCB with Motor Distribution

Product Details:
Place of Origin: China
Brand Name: KRIPAL
Certification: CE
Model Number: UKM30-400
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: negotiable
Packaging Details: Each unit packed in a individual box
Delivery Time: 20 days and depends on ordering quantity
Payment Terms: T/T, L/C
Supply Ability: 30000 pcs per month
Detailed Product Description
Ampere Range: 250A 300A 350A 400A Poles Available: 4 Pole
Certificate: CE Purpose: For Protection Of Power Distribution
Trip Unit: Thermal Magnetic Trip Current: Fixed
High Light:

Thermal Magnetic Circuit Breaker

,

Residential Circuit Breakers


350A Small Molded Case Circuit Breaker 4 Pole MCCB with Motor Distribution

The UKM30 series molded case circuit breaker is high-tech products in 21st century with advanced design, high performance, pleasant apprearance and delicate dimension.


Description:

Molded Case Circuit Breakers UKM30 series (hereinafter called as UKM30 MCCB) is a new designed MCCB Developed and manufactured adopting international advanced technology. UKM30 MCCB rated insulating Voltage AC 800V is suitable for using in the circuit of AC 50Hz /60Hz, rated voltage up to 690V, rated Working current up to 2500A to distribute electric power and to protect the line and the equipment from being Damaged due to overload, short current and under-voltage. It can also be used for infrequently switch and Starting of motor and for motor overload, short circuit and under-voltage protections. UKM30 MCCB with the  Advantages of the small volume, high breaking capacity, short over-arcing (some of specification is zero Arcing), strong anti-vibration and so on.



Specifications:



Type UKM30-100S UKM30-250S UKM30-400S
Rated current In(A) 16,25,32,40,50, 63,75,100 100,125,150,175,200,225,250 250,300,350,400
Number of poles 3 4 3 4 3 4
Rated voltage Ui(V) AC690V AC690V AC690V
Arc distance (mm) ≤50 ≤50 ≤50
Rated ultimate short-circuit breaking capitily Icu/Ics(KA) AC690V 5/3 5/3 10/10
AC400V 50/35 50/35 70/70
AC230V 100/50 100/50 100/100
Operational performance (times) ON 6000 2000 1000
OFF 8500 7000 4000
Dimensions (mm) a 90 120 105 140 140 185
b 155 165 257
c 68 68 103
Weight(kg) 1.1 1.4 1.5 1.9 5.5 7.5
Rated operation frequency  120 120 60





Protection Characteristic

The thermodynamic release of a circuit breaker provides the feature of inverse time-delay, while the magnetic release is the instantaneous operation as shown on table 2(distribution circuit breaker) and table 3 (motor protection circuit breaker).

Table 2

Rated current ofrelease (A)

Thermodynamic release( ambient temp )

Operationalcurrent ofmagneticrelease (A)

1.05In(cold state)
Inoperative time(h)

1.30In(heat state)
Operative time(h)

10≤In≤63

≥1

< 1

10In±20%

225≤In≤630

≥2

< 2

100≤In≤800

≥2

< 2

5In±20%



Table 3

Rated current ofrelease (A)

Thermodynamic release( ambient temp )

Operational current of magnetic release (A)

1.0In(cold state)
Inoperative time(h)

1.20In(heat state)
Operative time (h)

1.50In(heat state)
Operative time (h)

7.2In(cold state)
Operative time(h)

10≤In≤225

≥2

<2

≤4min
≤8min

4s< Tp ≤10s
6s< Tp ≤20s

12In±20%

225≤In≤630




Mounting:

350A Small Molded Case Circuit Breaker 4 Pole MCCB with Motor Distribution 0



Normal application environment:



Altitude ≤ 2000m


Ambient temperature -5~+40


Tolerance of the influence of humid air.


Tolerance of the influence of salt mist and oil mist.


Maximal gradient is 22.5


Kept in the media without explosive hazard.


There is no conductive dust or gas which is able to erode metal or destroy insuation


Kept in the place where no sleet will attack.
