ABS ABE series Overcurrent Protection Molded Case Circuit Breaker High Speed

ABS ABE series Overcurrent Protection Molded Case Circuit Breaker High Speed
ABS ABE series Overcurrent Protection Molded Case Circuit Breaker High Speed

Large Image :  ABS ABE series Overcurrent Protection Molded Case Circuit Breaker High Speed

Product Details:
Place of Origin: China
Brand Name: KRIPAL
Certification: CE
Model Number: ABE104
Payment & Shipping Terms:
Minimum Order Quantity: 100 pcs
Price: negotiable
Packaging Details: Each unit packed in a individual box
Delivery Time: 20 days and depends on ordering quantity
Payment Terms: T/T, L/C
Supply Ability: 30000 pcs per month
Detailed Product Description
Ampere Range: 10A,15A,20A,30A,40A,50A,60A,75A,100A Poles Available: 2pole 3 Pole 4 Pole
Certificate: CE Purpose: For Protection Of Power Distribution
Trip Unit: Thermal Magnetic Warranty: 2 Years
High Light:

Earth Leakage Circuit Breaker

,

Residential Circuit Breakers



ABS ABE series Overcurrent Protection Molded Case Circuit Breaker High Speed thermal magnetic

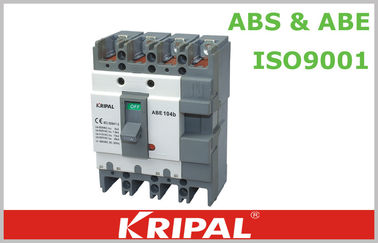

ABE104 100A 4P molded case circuit breaker with overcurrent protection

ABS/ABE series motor protection circuit breaker is suitable for industrial or commercial power and lighting with AC50/ 60Hz, rated working voltage up to AC600V/DC250V, rated current up to 630A.

It's a kind of economical breaker with the characters of stable and reliable function, beautiful appearance, small size and long life. It can be used for conversion of line and infrequent starting motor.

It can also be attached to install the accessories which have protection function for avoiding loss-voltage, under voltage.

The product can install connection line with front board and back board, it also can equip hand-operating apparatus or motor-operating apparatus to control in a remote distance.



TWO TYPE PROTECTION:

A.Shirt circuit protection; (Magnetic protection)

B.Overload protection; (Thermal protection)

Specifications:



Type  2pole  AB-32E  AB-52E  AB-52S

AB-

62E

AB-

62S

AB-

102E

AB-

102S

AB-

203E

AB-

203S

AB-

403E

AB-

403S

3pole  AB-33S  AB-53E  AB-53S

AB-

63E

AB-

63S

AB-

103E

AB-

103S

Frame

size(AF)

30 50 60 100 225 400

Rated operational voltage(V)Ue (50/60Hz)  600 600 600 600 600 600 600 600 600 600 600
Rated insulation voltage(V)Ui(50/60Hz)  690 690 690 900 900 690 690 690 690 690 690
Rated impulse withstand voltage(KV)Uimp  6 6 6 6 6 6 6 6 6 6 6
Uitimate breaking capacity (KA,Icu AC 50/60Hz)  220V/240V  10 10 25 10 25 10 50 35 50 35 50
380V  7.5/5  7.5/5  14/10 7.5/5  14/10 7.5/5  25 18 25 30 42
415V  7.5/5  7.5/5  14/10 7.5/5  14/10 7.5/5  25 18 25 25 35
440/460V  5 5 10 5 10 5 25 18 25 25 35
480/500V  2.5 2.5 7.5 2.5 7.5 2.5 25 10 14 18 25
600V  2.5 2.5 5 2.5 5 2.5 14 7.5 10 18 22
Utilisation category
Endurance  Mechanical  8500 8500 8500 8500 8500 8500 8500 7000 7000 4000 400
Electrical  1500 1500 1500 1500 1500 1500 1500 1000 1000 1000 1000





Benefits


1. Reduce energy and operations costs
2. Improve power quality, reliability and uptime
3. Optimize equipment use

Applications


1. Building: Hotels, hospitals, offices and retalis
2. Data center and Networks
3. Industry: Mining and minerals, automotive, food and beverage and chemical industry
4. Energy and infrastructures: Airports, oil and gas, water, electrical energy and marine




Applicable working environment:



a. Altitude: 2000m or below



b. Ambient medium temperature:-5°C~ +40°C( +45°Cfor marine products)



c. Resist the effect of moist air.



d. Resist the effect of mold.



e. Max inclination: 22.50



f. Placed in the no explosive medium, which can't contain any gas and conductive dust that can erode metal and destroy the insulation.



g. Keep it where can prevent rain and snow.
