ZH Series 3 Phase Online UPS 15-400kVA , Output PF0.9 Transformless

ZH Series 3 Phase Online UPS 15-400kVA , Output PF0.9  Transformless
ZH Series 3 Phase Online UPS 15-400kVA , Output PF0.9  Transformless ZH Series 3 Phase Online UPS 15-400kVA , Output PF0.9  Transformless ZH Series 3 Phase Online UPS 15-400kVA , Output PF0.9  Transformless ZH Series 3 Phase Online UPS 15-400kVA , Output PF0.9  Transformless ZH Series 3 Phase Online UPS 15-400kVA , Output PF0.9  Transformless ZH Series 3 Phase Online UPS 15-400kVA , Output PF0.9  Transformless

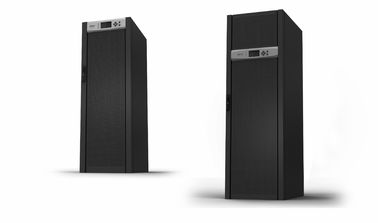

Large Image :  ZH Series 3 Phase Online UPS 15-400kVA , Output PF0.9 Transformless

Product Details:
Place of Origin: Shenzhen China
Brand Name: HRD
Certification: CE,ISO9001:2008
Model Number: ZH3315,ZH3320,ZH3330,ZH3340,ZH3360,ZH3380,ZH33100,ZH33120,ZH33160,ZH33200,ZH33300,ZH33400
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: USD,2500-48000USD/PCS
Packaging Details: Standard for export with pallet
Supply Ability: 300PCS/MONTH
Detailed Product Description
Color: Black Warranty: 2years After Shipment
Output PF: 0.9 High Efficency: 98.5% With Sugre Protection
Charger: ABM, True 3 Intveral Charging Process Back Up Time: Yes
Language: English, Spanish, Portughese, Russion, Korea,etc. Powerwalking: Yes
Parrallel: With Network Cable, Up To 4 Units Input PF: 1.0
Input Range: Voltage:-45%, +25% (400Vac) ,40-72Hz Market: Middle And High End Market
Stability: Super High Reliable ,MTBF Above 200,000 Hours ECT: Easy Capacity Test Function

 Reliable 15-400kva Online UPS System 98.5% With Sugre Protection



kVA

15

20

30

40

60

80

100

120

160

200

300

400

kW

13.5

18

27

36

54

72

90

108

144

180

240

360

Ups efficiency

94% (Full load on inverter-mode)

Standby

98.5% on HE mode, reliable protects load

Power expand

Easy expand capacity or redundancy via Hot-Sync

Topology

IGBT ON-Line Dual Conversion

AC to DC rectify

Rectifier

IGBT rectifier  with PWM tech

Input

Ac-Voltage

3Ph 380/400/415VAC +N+G (L-N: 220/230/240VAC)

Tolerance

-45%  Nominal + 25%

THD

3%

Frequency

50Hz (60) auto-detect (40-72Hz range)

Input P.F.

>0.99

Power Walk-in

Yes

Dc to Ac inversion

IGBT Inverter

Transformer-less

Output P.F.

0.9

Voltage

3Ph 380/400/415VAC +N+G (L-N: 220/230/240VAC) + 1%

Overload

115%: keep working, 125%, 10mins

THDi

2%

Frequency

50Hz (60)

Unbalanced load

100%

Crestor factor

3:1

Bypass

Static bypass

Yes

Voltage

3Ph 380/400/415VAC +N+G (L-N: 220/230/240VAC) + 15%

Maintenance bypass

SWMB

Yes

Battery configure

Yes

Option

Charge

ABM or 3-stage charge control

Battery type

VRLA or Gel

Backup time

Depend on capacity, discharge depth

Quantity

32-40 cells, default 36

36-40 cells, default 40

Recharge time

8 hours up to 90%

Communication slot

Slot

RS232, Mini-slot

Accessory

Mini-slot SNMP/Web Card, Mini-slot Modbus/Ethernet card, Mini-slot AS400 card

Operation condition

Temperature

0-40℃

Storage

-25-55℃

Humidity

5-95% non-condense

Altitude

No degrade power under 1000m

Noise (dB)

55

62

65

70

73

Standard

EMC

61000-4

EMI

EN5550022/EN55024

Quality

ISO9001-2008

Certificate

CE

kVA

15

20

30

40

60

80

100

120

160

200

300

400

Physical Size

500*710*960

500*710*1230/1500

600*800*1876

1600*820*1880

Ups Weight

72

91

120

202

245

283

311

457

860

970

Ups with battery

272

376

490

External battery design

Ups with transformer

220

245

328

532

575

660

720

Transformer-less
