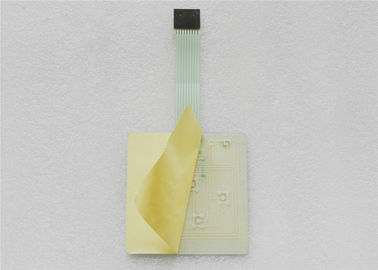

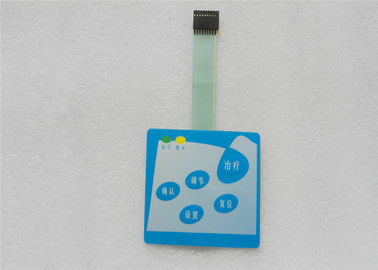

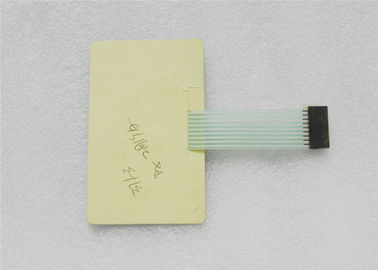

LED Flexible Connector Membrane Keypad Switch / Autotype Membrane Switches

LED Flexible Connector Membrane Keypad Switch / Autotype Membrane Switches
LED Flexible Connector Membrane Keypad Switch / Autotype Membrane Switches LED Flexible Connector Membrane Keypad Switch / Autotype Membrane Switches LED Flexible Connector Membrane Keypad Switch / Autotype Membrane Switches

Large Image :  LED Flexible Connector Membrane Keypad Switch / Autotype Membrane Switches

Product Details:
Place of Origin: China
Brand Name: Wu Yin
Certification: ISO
Model Number: 390-9-1
Circuit: 0.125 PET or 0.125 flexible PCB keyboard
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: According to customer’s requirment
Delivery Time: 7-15days
Payment Terms: L/C,T/T,Paypal
Detailed Product Description
High Light:

push button Membrane Switch

,

rubber membrane keyboard


LED Flexible Connector Membrane Keypad Switch / Autotype Membrane Switches


Quick Detail:

1. Waterproof
2. PET/PC overlay
3. 100% QC
4. Short lead time
Custom made(best service,high quality,low price)




Why can you choose Shenzhen BOERZHUO ELECTRONIC CO., Ltd:

We are a professional manufacturer of membrane switch in Shenzhen, China.

Our main products: Membrane switch
                                    Nameplate
                                   Graphic overlay
To be specific, we are a processing factory, so Both OEM and ODM orders are welcome.

Our company has attained certificate of ISO9001:2008, we promises High quality products. Over 200 customers at home and abroad have chosen us.



Key specifications/special features:

1. Customized specification is available.
2. Beautiful appearance, long life-span, good tactility, abrasion resistant, dustproof, oil resistant, waterproof, etc.
3. High quality printing.


Technical Parameters

1. Electrical

Maximum Circuit Rating: 35V(DC),100mA,1W

Contact Resistance: 10Ω~ 500Ω (Varies from the trace length and material)

Insulation Resistance: 100MΩ 100V

Dielectric: 250 Vrms (50~60Hz 1min)

Contact Bounce: < 5ms

Life:   Flat: ≥ 5million times

          Tactile: ≥ 1 million times

           Dura switch: ≥ 10million times


2. Mechanical

Actuation Force: Flat: 57~284g(2~10oz)

                             Tactile: 170~397g(6~14oz)

Switch Height:  Flat: 0.1~0.5mm

                            Tactile: 0.6~1.5mm



3. Environment

Operation Temperature: -40~+80 Degree Centigrade

Storage Temperature: -40~+80 Degree Centigrade

Humidity: 90%~95%, 240 hours



PCB+Components+PCB Assembly
1: SMT/DIP Automatic PCB Assembly
2: PCB,PCBA Copy Services,Function Test
3: UL,RoHS,SGS,ISO9001
4: Membrane Switch


Advantages:

Both Pantone and real color matching system, using advanced light box and computer color matching
Good material control to make sure all the materials are high quality
Compliant with the RoHS Directive
100% functional testing and specified testing, such as humility testing, life expectancy testing, actuation force testing
Except membrane switch and touchscreen, different types of assembly, such as membrane switch and touchscreen with FPC, PCB, silicone rubber, metal backer, plastic bezel and more
Electrical performance:
Loop resistance: function of trace width and length, 10 to 500Ω (varies from the trace length and material), in most applications the maximum loop resistance is less than 100Ω



Open-circuit: 50MΩ minimum
Contact rating: 100 Milliamps at 36V DC maximum
Maximum circuit rating: 36V DC, 100mA, 1W
Insulation resistance: 100mΩ, 100V
Dielectric: 250Vrms (50 to 60Hz)
Contact bounce: <5ms
Life cycle: 1 million times nominal
Operating temperature range: -45 to +80°C
Flat button can reach to 5 million times


Mechanical:


Actuation force:
Flat: 57 to 284g (2 to 10oz)
Tactile: 170 to 397g (6 to 14oz)


Switch height:
Flat: 0.1 to 0.5mm
Tactile: 0.6 to 1.5mm


Environment:
Operating temperature: -40 to 80°C
Storage temperature: -40 to 80°C
Humidity: 90 to 95% RH

Primary Competitive Advantages:
Green Product
Guarantee/Warranty
International Approvals
Product Features
Product Performance
Prompt Delivery
Quality Approvals



Certification:

UL Approval
ROHS
ISO9001:2000
CE certification
SGS Lead-free certification


*well and high quality control
*prompt delivery
*small order acceptable
*perfect craft procedure
*customer's designs are welcome
